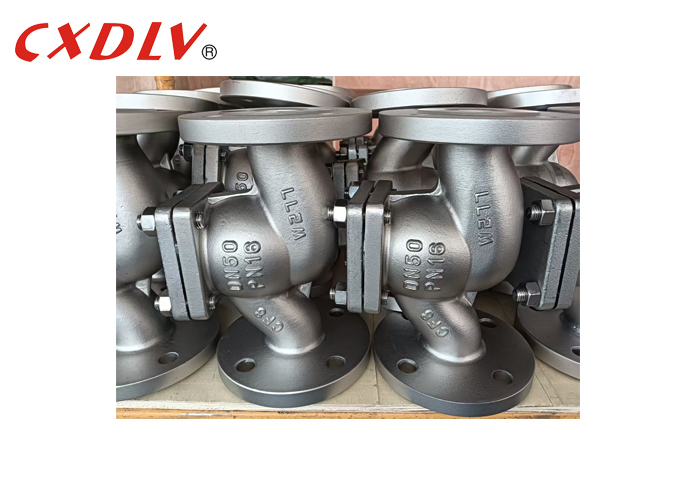

Non Slam Stainless Steel Lift Type Check Valve DN50 PN16 Flange Connection
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | CXDLV |
| 인증: | CE,ISO |
| 모델 번호: | H41W-16P |
결제 및 배송 조건:
| 최소 주문 수량: | 1pc |
|---|---|
| 가격: | FOBUS$24~US$1140/pc |
| 포장 세부 사항: | 다른 밸브 구조에 따라 적절한 합판 사례 |
| 배달 시간: | 5 ~ 35 근무일은 수량에 따라 다릅니다 |
| 지불 조건: | 전신환, L/C (신용장),, 인수 인도, D/P (지급도 조건), 웨스턴 유니온, 머니그램 |
| 공급 능력: | 한 달에 1000pc |
|
상세 정보 |
|||
| 제품 이름: | 플랜지 체크 밸브 | 몸: | CF8, CF8M, WCB, CF3, CF3M |
|---|---|---|---|
| 구조: | 리프트 유형 | 연결: | 플랜지 끝 |
| 기준: | ANSI, DIN, JIS, GB | 압력: | 1.6MPA |
| 온도: | -20℃~150℃ | ||
제품 설명
Non Slam Stainless Steel Lift Type Check Valve DN50 PN16 Flange Connection
Check Valve Overview
Check Valves also called as one- way directrional valves, are safety valves that allow gases and liquids to flow in single direction. The main purpose of check valves is to prevent the flow in reverse direction which would othervise cause the system or equipment to damage, partially or completely,causing a major setback.
Check valves are applicable in systems such as compressors or pumps where flow of gas or liquid in reverse direction would cause the system to shut down completely. They are also applicable in conditions where the system possesses varied pressures and they all need to be hept separately. They operate on the pressure drop creat by the medium in which they reside, hence they do not require any external power supply.
Check Valve Feature
Flange Lift Check Valve
Applicable Standards:
-Design and Manufacturing:GB/T12236-2007
-Flange Connection:HG/T20592,En1092
-Test and Inspection:GB/T26480-2011
Size Range:
DN25~DN300
Pressure Rating:
PN16~PN40
Temperature Range:
-20℃~150℃
Check Valve Application
Cold and hot water,gases,steam and other neutral liquids. Preventing backflow in air,water,sea water and oil systems etc,
Suitable when rapid flow reversal can occur, to prevent hammering.
Why Choose us?
Specializing:
XIDELONG specializes in manufaturing ball valve,butterfly valve,gate valve,globe valve,check valve,sight glass....
Advantage:
1.Price: As we are the professional manufacturer in valves, we ensure that the price offered must be very competitive comparing with others.
2.Raw material inspection:All material test high quality, and keep in ware house
3.Workers:All workers train 3 months,skilled workers on production line
Fast Delivery:
We maintain an extensive inventory of flanged check valves,parts and components in a wide variety of materials so we can respond to your needs quickly. Valves are typically assembled and tested within 1 to 2days after receipt of an order.
