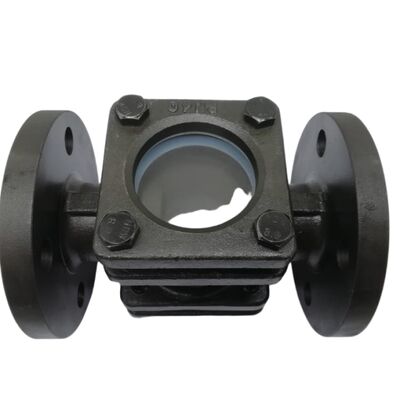

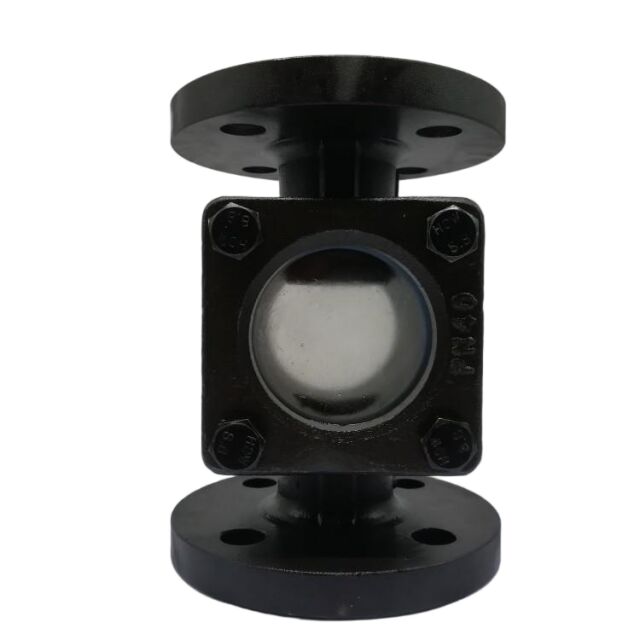

High Pressure Flanged Sight Glass with WCB Body and Pyrex Glass Offering Clear Visual Access and Strong Flanged Connections
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | CXDLV |
| 인증: | CE&ISO |
| 모델 번호: | sg-zt |
결제 및 배송 조건:
| 최소 주문 수량: | 1PC |
|---|---|
| 가격: | FOBUS$34~550/pc |
| 포장 세부 사항: | 다른 밸브 구조에 따라 적합한 합판 케이스 |
| 배달 시간: | 5 ~ 25 일 근무일 |
| 지불 조건: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| 공급 능력: | 1000pcs/mon |
|
상세 정보 |
|||
| 재료: | 탄소강 | 유리: | 강화유리 |
|---|---|---|---|
| 글래스크: | ptfe | 온도: | 20 ℃ ~ 185 ℃ |
| 연결: | ANSI 플랜지 | 크기: | 1/2 "~ 8" |
| 강조하다: | flanged sight glass with WCB body,high pressure sight glass with Pyrex,flanged sight glass for clear visual access |
||
제품 설명
High Pressure Flanged Sight Glass with WCB Body and Pyrex Glass Offering Clear Visual Access and Strong Flanged Connections
Product Feature
Double Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- 1/2"~8"
Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C
Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.
Salient Features
Easy Maintenance
Available in all most all Material of Construction
Manufactured to the Highest Standard
Durable Construction
Material Test Certificate & Pressure Test Certificates furnished on request.
Technical Data
| Size | Dimension(mm) | ||||||
| H | L | D | D1 | D2 | b | Z-d | |
| 2" | 140 | 230 | 162 | 127 | 92 | 23 | 8-19 |
| 6" | - | 420 | 318 | 270 | 216 | 36.5 | 12-22 |
Quality Control
We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
Why choose Xidelong?
Specializing:
We are specializing in manufacturing Ball Valve , Butterfly Valve , Gate Valve , Globe Valve , Check Valve , Sight Glass , Valve Accessories ......
Advantage:
1.Price: As we are the professional manufacture in valves and accessories, we ensure that the price offered must be very competitive compare with others.
2. Raw material inspection: All material test high quality, and keep in warehouse.
3. Workers: All workers training 3 months, skilled workers on production line.
Sample Order:
We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)
