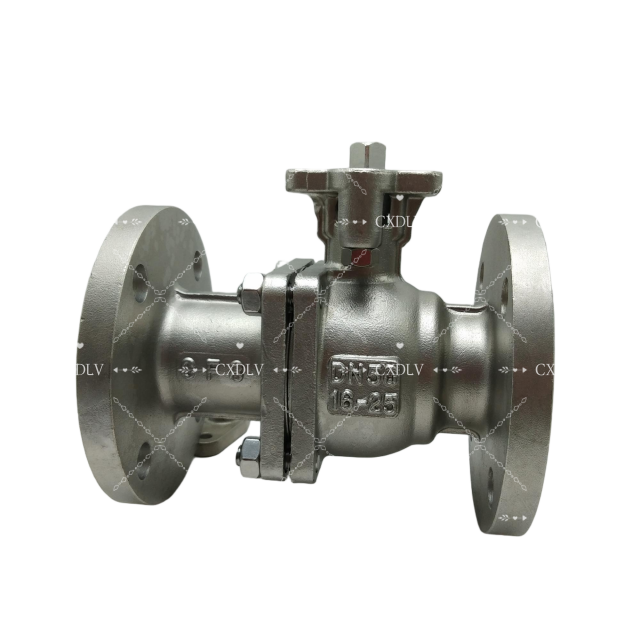

Stainless Steel Ball Valve High Platform Double Flange Valve Compliant with Industrial
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | CXDLV |
| 인증: | CE,ISO,TS |
| 모델 번호: | Q41F |
결제 및 배송 조건:
| 최소 주문 수량: | 1PC |
|---|---|
| 가격: | FOBUS$28~US$750/pc |
| 포장 세부 사항: | 다른 밸브 구조에 따라 적절한 합판 사례 |
| 배달 시간: | 5 ~ 25 일 근무일 |
| 지불 조건: | T/T,L/C,D/A,D/P,웨스턴 유니온,MoneyGram |
| 공급 능력: | 달 당 5000PCS |
|
상세 정보 |
|||
| 몸: | CF8, CF8M, WCB ... | 좌석: | ptfe, rptfe |
|---|---|---|---|
| 구조: | 풀 보어 | 포트 크기: | DN15~DN200 |
| 연결: | 플랜지 | 기준: | ANSI, ASME, API, DIN, JIS, BS, GB |
| 압력: | 1.0~6.4MPa | 작업: | 공기이고 전기입니다 |
| 애플리케이션: | 물, 기름, 가스 ... | ||
| 강조하다: | stainless steel ball valve with flange,high platform double flange valve,industrial stainless steel ball valve |
||
제품 설명
Stainless Steel Ball Valve High Platform Double Flange Valve Compliant with Industrial
Ball Valve Features
High Platform Ball Valve
Applicable Standards:
- Design and Manufacturing: GB12237-89
- Flange Connection: JB/T79
- Fireproof Test: API607 4th 1993
- Test and Inspection: GB/T13927-1992
Size Range:
- DN15 ~ DN200
Pressure Rating:
- PN16,PN25,PN40,PN63
Body Material:
- CF8,CF8M,WCB,CF3,CF3M,Duplex Stainless Steel...
Seat Material:
- PTFE,PPL,POB...
Temperature Range:
- 20°C~280°C
Accessories:
- pnematic actuator,electric actuator,worm gear,manual override,solenoid valve,limit switch,filter
OEM WELCOMED
Ball Valve Dimension
(Unit:mm)
| Pressure | DN | Size | L | D |
| PN16 | 15 | 1/2" | 130 | 95 |
| 20 | 3/4" | 140 | 105 | |
| 25 | 1" | 150 | 115 | |
| 32 | 1-1/4"" | 165 | 135 |
Advantages of Ball Valve
- With lowest flow resistance
- It can realize quick opening and closing, and the opening and closing time of some structures is only 0.05~0.1s, so that it can be used in the automation system of the test stand. Quick open and close the valve when operating without impact.
- In full open and full closed, the ball and seat of the sealing surface and media isolation,so high-speed through the valve medium will not cause the erosion of the sealing surface.
- Compact structure,light weight,it can be considered for low-temperature medium system for the most reasonable valve structure.
- Manufactured in different sizes providing flexibility in selection
- Provide safe service under high pressure and high temperature conditions
- Compared with other valves,they are controlled with less force.
Ball Valve Applications
Ball Valves are used for flow and pressure control and shut off for corrosive fluids,slurries,normal liquid and gases.
They are used in the oil and natural gas industrial,but also find a place in many manufacturing sectors and chemical storage.
